Microsoft has added several registry values to be used by the Add/Remove Programs (ARP) system applet.
Software packages have to register to the following registry key to show up in ARP:
HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Uninstall
An application can either use it's name or a generic product GUID. Known product GUID's are:
{00010409-78E1-11D2-B60F-006097C998E7} Microsoft Office 2000 Professional
{0C03D23C-AB53-40FE-8245-B43070869C80} Hummingbird SOCKS v7.0 Client
{63CB7620-B423-4BF1-A7E4-75BB8B64740E} McAfee VirusScan v4.5.0
{6F716D8C-398F-11D3-85E1-005004838609} Microsoft Web Folders
{76542EE3-5849-11D2-9C18-00609707C0FF} BlackIce
{90510409-6D54-11D4-BEE3-00C04F990354} Microsoft VISIO 2002 Professional
{A5BA14E0-7384-11D4-BAE7-00409631A2C8} Macromedia Dreamweaver 4.0 Extension Manager
{ABDA9912-5D00-11D4-BAE7-9367CA097955} Macromedia Dreamweaver 4.0 UltraDev
{CA96F3A1-F350-11D3-B354-002035C150E4} IBM Intranet application

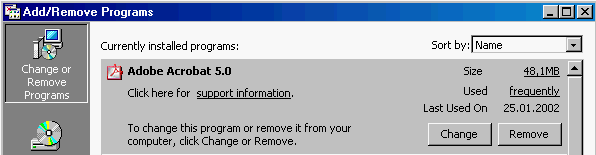

By clicking support information you'll receive this window (only if correspending values are set):
| value name | value type | purpose |
| Comments | String | I do not know what this value is used for yet... |
| Contact | String | I do not know what this value is used for yet... |
| DisplayIcon | String | Icon File Name |
| DisplayName | String | Product Name |
| DisplayVersion | String | Product Version |
| HelpLink | String | http://YourWebHelpPage |
| HelpTelephone | String | Help phone number |
| InstallDate | String | Install Date |
| InstallLocation | String | Installation target directory |
| InstallSource | String | Installation source directory |
| Language | Number | Selected language |
| NoModify | Number | 0 - allow, 1 - disallow |
| NoRemove | Number | 0 - allow, 1 - disallow |
| NoRepair | Number | 0 - allow, 1 - disallow |
| ProductID | String | Product ID |
| Publisher | String | Company name |
| ReadMe | String | Path to ReadMe File |
| RegCompany | String | Registered Company |
| RegOwner | String | Registered User |
| URLInfoAbout | String | http://YourCompanyPage |
| URLUpdateInfo | String | http://YourProductUpdatePage |
| VersionMajor | String | WWXXYYZZ in Hex converted to Decimal, like "134217728" |
| VersionMinor | String | Sub-Version in Dec |
| WindowsInstaller | Number | 1 - installed by Windows Installer, 0 if other like InstallShield Professional |
Known bugs:
1.
If "InstallLocation" is not set properly Windows 2000 reports size of Uninstall folder instead !
“C:\Program Files\InstallShield Installation Information\{PRODUCT_GUID}”
2.
If "DisplayIcon" is not set properly Windows 2000 relies on information stored in the following registry path:
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\App Management\ARPCache
"SlowInfoCache"
"Changed"
SlowInfoCache stores the path to the icon source as well along with a checksum. If this value becomes corrupted
Windows 2000 diplays a placeholder instead of the correct icon (red cross along with name computer graphic).
